Simple $3.00 Ham Radio Antenna-2M Moxon


You don't have to spend a lot of money to make a sturdy, efficient Moxon Antenna for the 2 meter Amateur Radio Band.

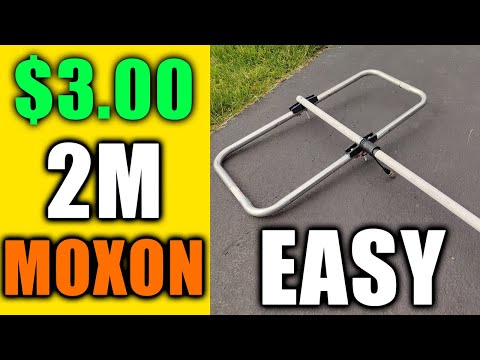

In this video from Sean ("Ham Radio Dude"), we see how a few old camper stools, a length of RG-59 coaxial cable, a few nuts and bolts, pvc pipe, and several spacers can be converted into a portable 2 meter Moxon Antenna.

If you can't see the video, please insert this title URL into your browser search box:  https://www.youtube.com/watch?v=Jpb4dM41_8Q

Here are a few comments from Sean:

I had the opportunity to find some old Camping stools from SAVERS, a local thrift store, so I destroyed them and made a Moxon antenna! I have heard the stories of a Lawn chair dipole and Yagi - (Check out https://www.youtube.com/watch?v=5doak... for Ham Radio Crash Course's Lawn Chair Dipole) or https://qsysociety.org/2009/01/04/6-m... for a 6 meter lawn chair moxon (This idea is nothing new) Links referenced: Antenna Top Moxon build instructions (VERY GOOD INSTRUCTIONS) - These instructions are super easy to understand and the detail that is gone into is not overly complicated : http://www.antentop.org/w4rnl.001/mvh... Moxon calculator in multiple measurements (Inches, Feet, MM, etc) - http://tippete.net/cgi-bin/moxgen.pl I forgot to mention why this Moxon really wasn't $3.00: the metals were $3.00, but nuts and bolts cost me 11.50 cents. I used stainless steel nuts and bolts. The coax was RG59 which was laying around. The PVC I also had laying around. I would still say this could be built for less than 20. I will have the spacers available on Thingiverse in the future. In FULL clarity: My motivation from that spacer came from my Hygain 5 element Yagi, which uses a cool, similar piece. I have a few ideas for the future improvement. I realize this is a long video, but I wanted to document how i went through this build, in order to help others. I openly admit that I am in pursuit of knowledge every day and I am just as wet behind the ears as most, but I ENJOY this kind of learning and I know others do as well. Thank You for watching.
Show less

 Thanks for joining us today.

Aloha es 73 de Russ (KH6JRM).
